Product Description
Product introductionFor wooden molded industrial pallets, the raw materials can be wood chips, straw, etc. This is the overall structure, with the panel and 9 supporting feet molded at one time. The upper surface of the pallet board is smooth, which can meet the transportation of various goods, and the lower surface is reinforced. The longitudinal and horizontal forces of the board are balanced, and the 9-foot distribution meets the four-way insertion of a forklift. This is a four-way fork, single-sided pallet.
Features
1) The moisture content of the pallet is low, generally controlled at 8%. The pallet does not absorb moisture and will deform during use.
2) Dimensional stability, light weight, no deformation and warping.
3) The mold products have high dimensional accuracy and are specially designed to maintain the strength of the steel bars to ensure product accuracy and production.
4) The strength and stiffness can be kept constant and the natural defects of the wood itself are eliminated during the molding process, resulting in higher strength than traditional board assembly products.
5) 50% lighter than hardwood solid wood pallet products.
6) Rounded corner design to prevent damage during product packaging and transportation. It can realize automatic binding processing and save operation time.
7) Multiple pallets can be stacked together to form a nested structure.
8) Suitable for transportation of import and export business, no fumigation required.
9) Pallets can be made from wood processing residues and waste wood.
10) The product is environmentally friendly, can be recycled, recycled and reused, has low pollution, and the recovery rate can reach 100%.
11) Cheaper than traditional softwood and hardwood materials.
12) Use environmentally friendly urea-formaldehyde resin adhesive directly as the adhesive for wood or wood fiber molds.

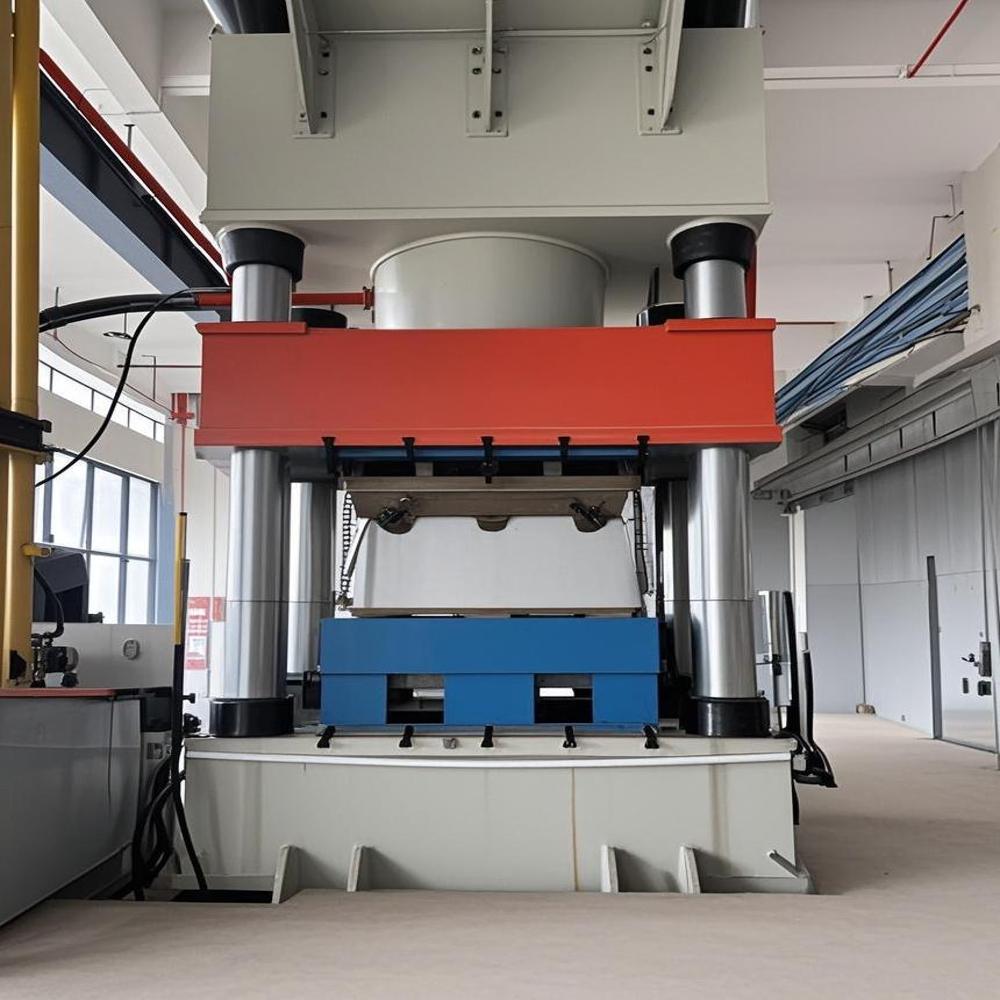

Advanced Technology for Maximum EfficiencyDesigned with a computerized PLC control system and user-friendly touch screen interface, this machine enables seamless operation with minimal training. Automatic feeding and high-speed molding cycles ensure productivity reaches 200-300 pallets daily, all with low labor involvement. Its industrial-grade hydraulic system and electric drive promise reliable, round-the-clock performance.
Versatile Material Compatibility and CustomizationUtilizing sawdust, wood chips, or recycled wood as primary inputs, the machine efficiently forms pallets adaptable to varying dimensions-up to 1200 mm by 1000 mm. Its customizable configurations allow for unique pallet shapes and sizes, supporting logistics, warehousing, and specialized packaging needs.
Industrial-Strength Design and DurabilityFabricated from robust alloy steel and high-strength iron, the machine weighs 4800 kg and boasts a compact footprint (3700 mm x 1600 mm x 2500 mm). The heavy-duty design ensures longevity even in demanding manufacturing environments. A water cooling system promotes stable operation, while an eco-friendly electric heating press offers sustainable performance.
FAQ's of Wooden Pallet Making Machine/High Quality Sawdust Heat Press/Pallet Making Machine:
Q: How does the Wooden Pallet Making Machine operate?
A: The machine uses a fully automatic process where raw materials like sawdust, wood chips, or recycled wood are fed into an automatic hopper. Using a PLC-controlled interface, it compresses these materials under 100-300 tons of pressure with an electric heat press, forming pallets in cycles of 120-150 seconds.
Q: What materials can be used as input for pallet production?
A: This machine is compatible with sawdust, wood chips, and various forms of recycled wood, providing flexibility in raw material sourcing and supporting the use of sustainable resources.
Q: When is this machine best utilized in production?
A: It is best suited for continuous, high-volume pallet manufacturing where efficiency and automation are critical, such as in large distribution hubs, packaging facilities, or warehousing operations.
Q: Where can the Wooden Pallet Making Machine be deployed?
A: The machine is suitable for setup in manufacturing factories, logistics centers, pallet export enterprises, and recycling plants. Its customizable voltage (380V/50Hz or as required) accommodates global installation.
Q: What is the production capacity and efficiency of this machine?
A: With fully automated feeding and operation, the machine can produce between 200 and 300 pallets per day, ensuring high efficiency while reducing manual labor requirements.
Q: How is the cooling of the machine managed during operation?
A: The Wooden Pallet Making Machine employs an integrated water cooling system, which helps regulate temperature during high-pressure, continuous operations, ensuring equipment longevity and safe handling.
Q: What are the key benefits of using this machine for pallet manufacturing?
A: Key benefits include high production output, reduced labor costs, customizable pallet sizes, environmentally friendly use of recycled wood, and a user-friendly computerized control system, making it a valuable asset for modern logistics and packaging businesses.
